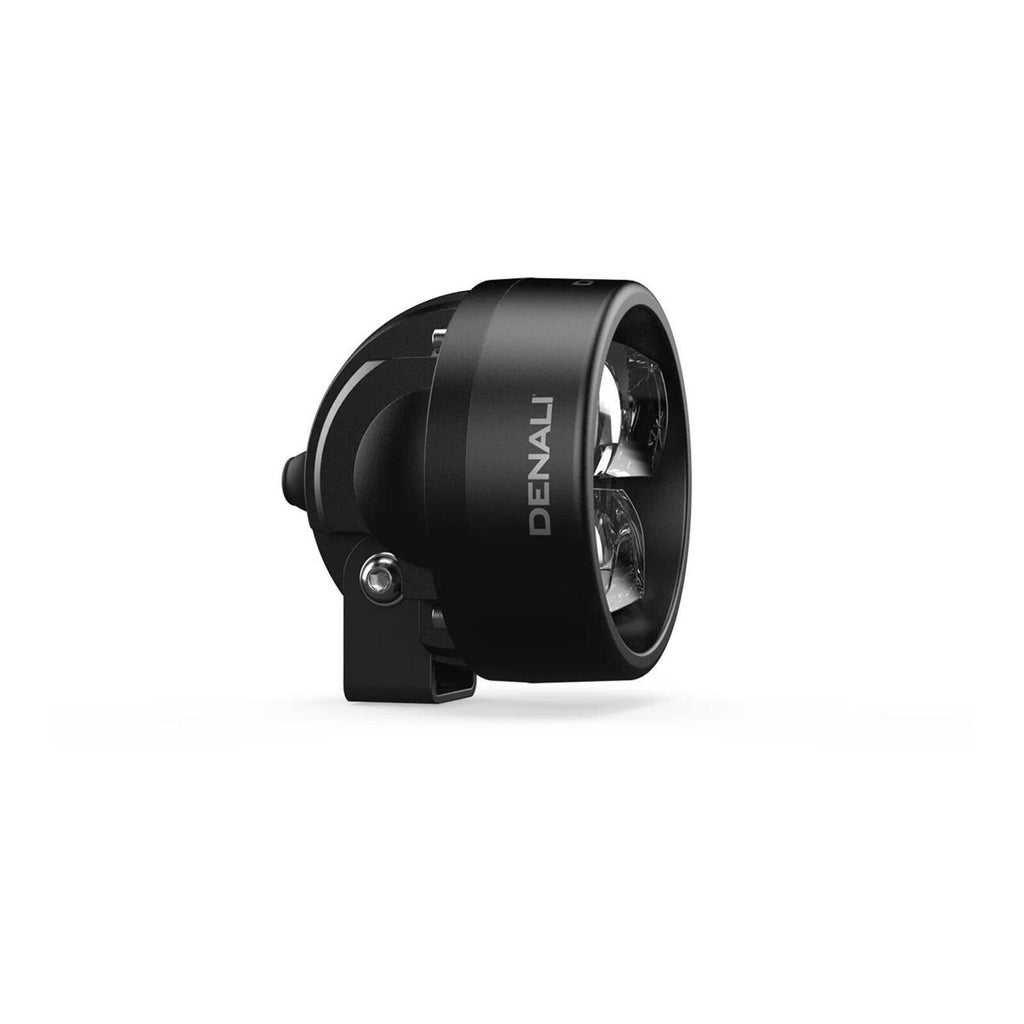

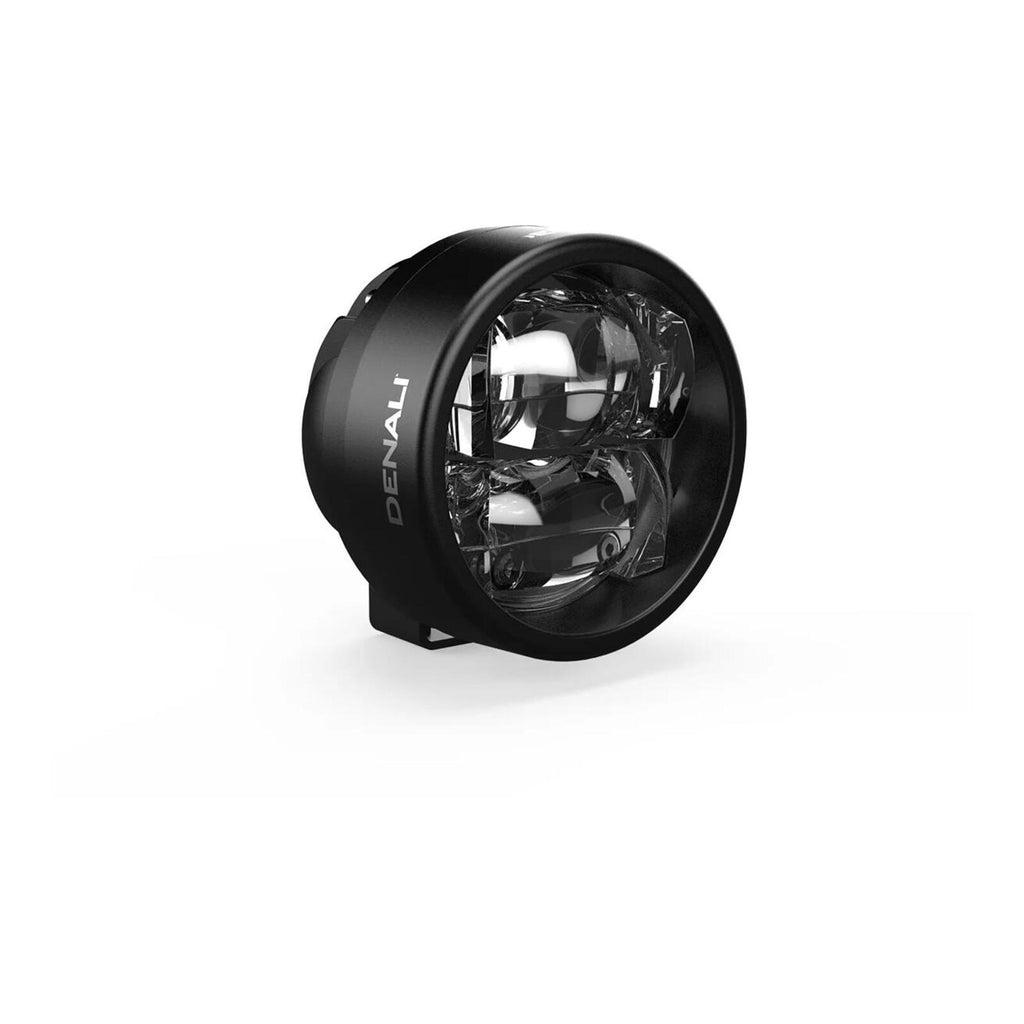

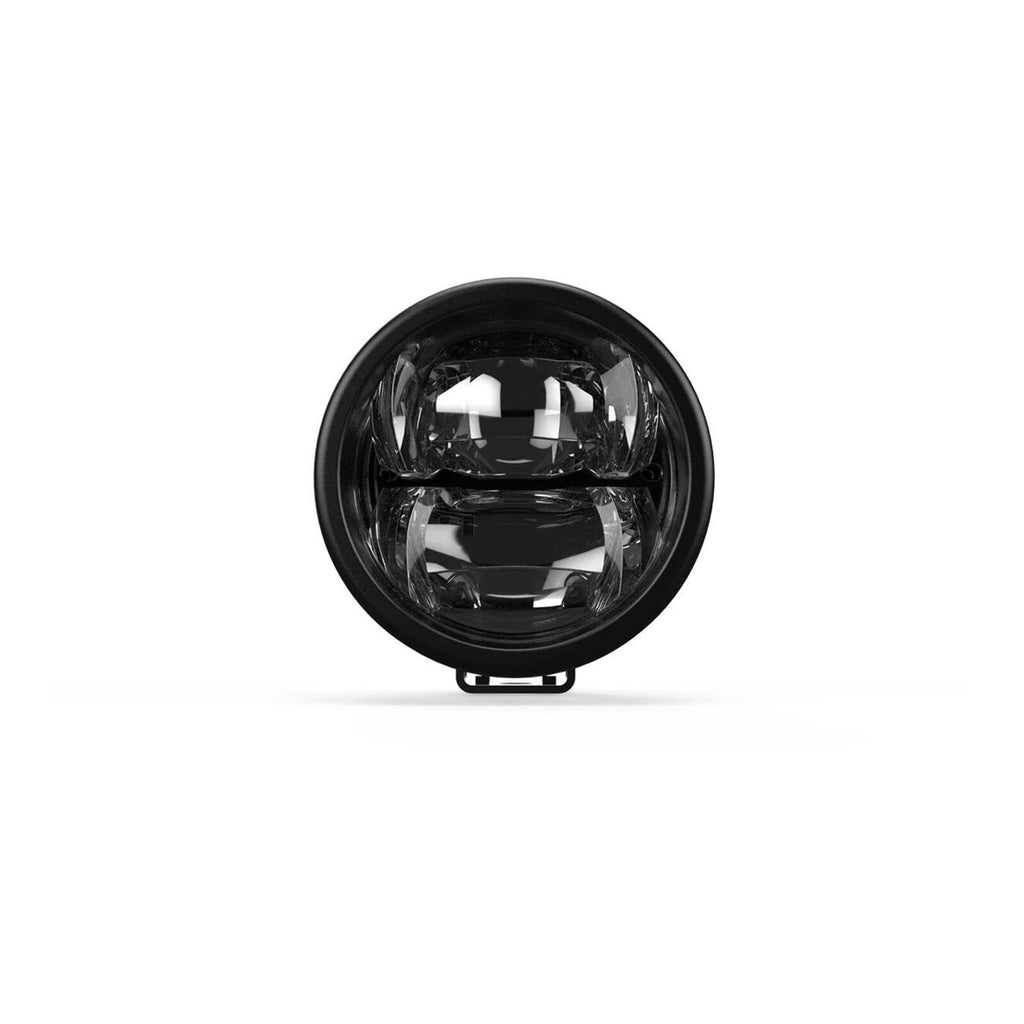

Denali D3 LED High-Low Headlight Kit with DataDim™ Technology
$529.99
The DENALI D3 LED lights are built on over a decade of DENALI innovation, delivering one of the highest-performing 36-watt street-legal driving lights available. Each D3 driving light features DENALI’s signature TriOptic™ beam system, which includes both spot and hybrid driving lenses with every light pod.
Unlike previous TriOptic™ lights, the D3 hybrid driving beam is both ECE and SAE compliant, providing an impressive street-legal high beam suitable for use in North America and European Union countries.
For riders seeking maximum off-road performance, the D3 spot lens is engineered for exceptional beam distance, measuring over 1,910 feet (582 metres) at 1 lux per pair. The compact 36- watt design outperforms many larger competing lights while maintaining outstanding long-range visibility.
Optional amber or selective yellow lenses are available to improve visibility in adverse weather conditions and increase visibility to other motorists.
The D3 is also available in an SAE and ECE-certified fog beam configuration, designed for riders seeking a true street-legal fog light with an ultra-wide beam pattern and sharp horizontal cut-off.
Features:
- TriOptic™ lens system includes both spot and hybrid lenses with each pod
- Street-legal spot and hybrid beams (SAE/DOT and ECE certified)
- High-intensity Cree LEDs producing 2100 lumens per pod
- DataDim™ 3-wire smart dimming technology compatible with all DENALI dimming controllers
- DrySeal™ waterproof construction designed for extreme environments
- Impact PC™ polycarbonate bezels resist cracking, fading, and corrosion
- LiveActive™ thermal management system helps prevent overheating and maintains light output
- Low-profile mounting bracket with stainless steel hardware included
- Additional SAE/DOT and ECE-certified hybrid driving lens included (spot lens installed)
- Optional amber and selective yellow lenses available
Beam Performance (Pair)
-
Spot Beam
- Beam Distance (1 lux): 1,910 ft (582 m)
- Beam Width (1 lux): 100 ft (30 m)
-
Combo Beam (1 spot, 1 hybrid)
- Beam Distance (1 lux): 1,520 ft (463 m)
- Beam Width (1 lux): 175 ft (53 m)
-
Hybrid Beam (High Beam SAE/DOT, ECE)
- Beam Distance (1 lux): 1,050 ft (320 m)
- Beam Width (1 lux): 225 ft (69 m)
Specifications (Single Pod)
- Pod Size: 3.5" (90 mm) round x 2.62" (66 mm) deep
- LEDs: 3 x 11W Cree XP-P LEDs
- Power Draw: 36W (3A)
- Lumens: 2100
- DataDim™ Compatible: Yes
- Operating Voltage: 9–32V DC
- IP67 waterproof and submersible
- Hybrid Lens Certifications: SAE/DOT J581 and ECE R112 (clear lens only)
- Spot Lens Certification: ECE R112
Light Pod Box Contents - DNL.D3.050
- (1x) D3 LED Light Pod (spot lens installed)
- (1x) D3 Hybrid Lens
- (1x) Hinge Mounts with M8 Stainless Steel Hardware
- (1x) Wiring Pigtail
