Stator - Kawasaki KLX250 S/SF ('09-'14) (RMS010-101405)
$392.99

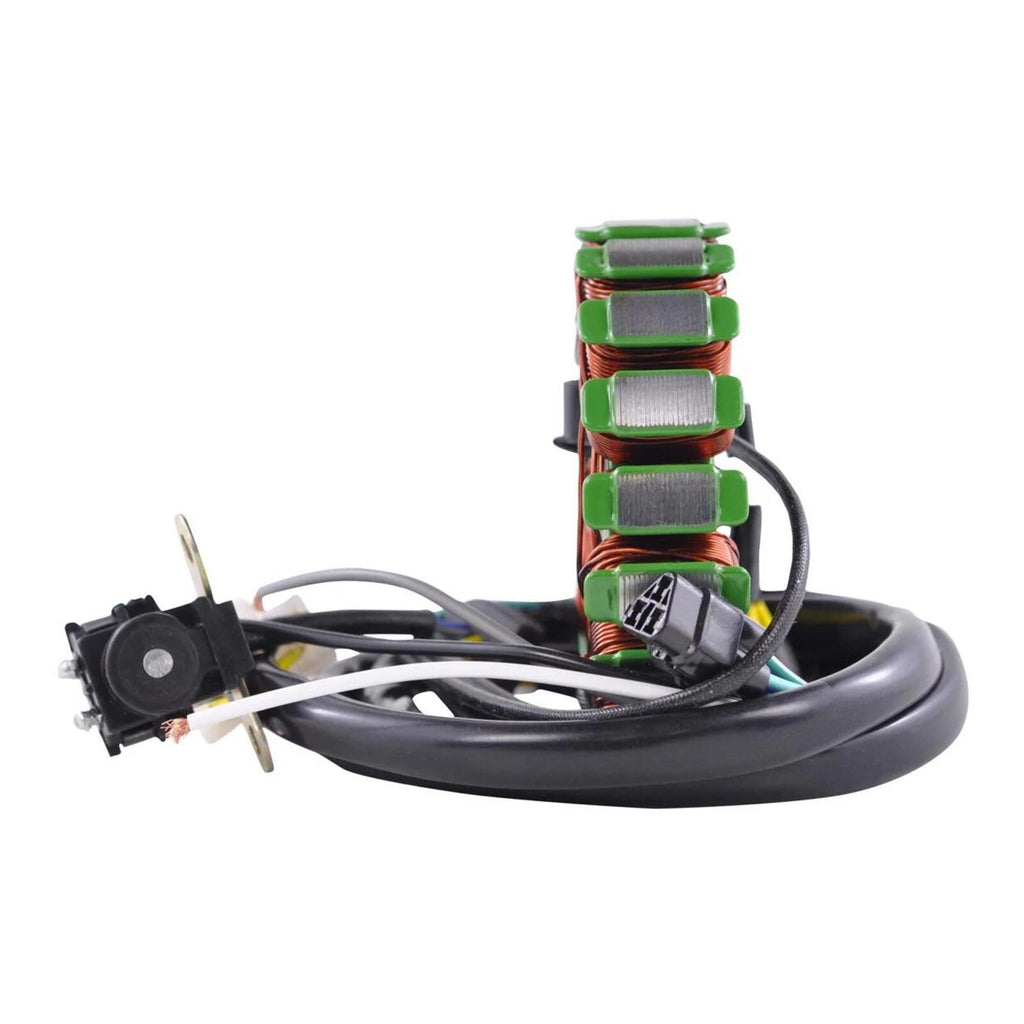

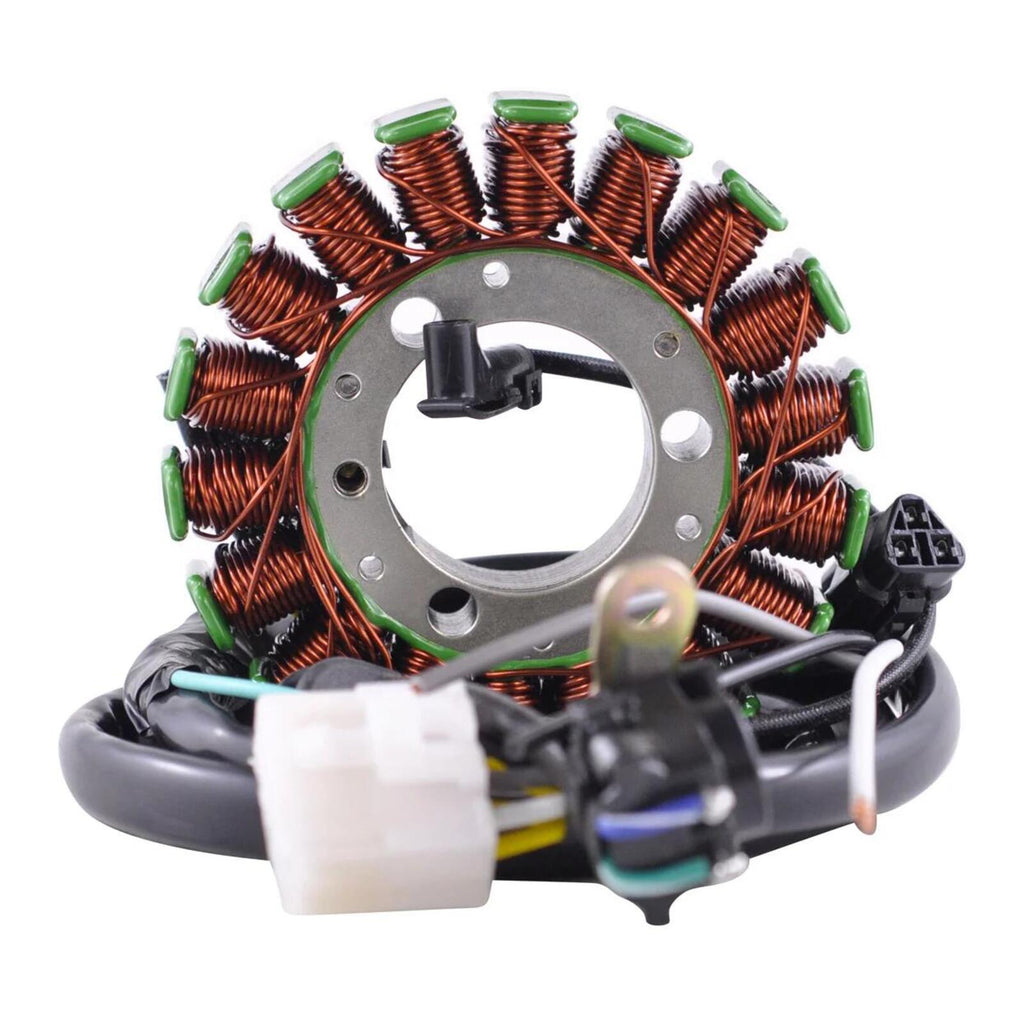

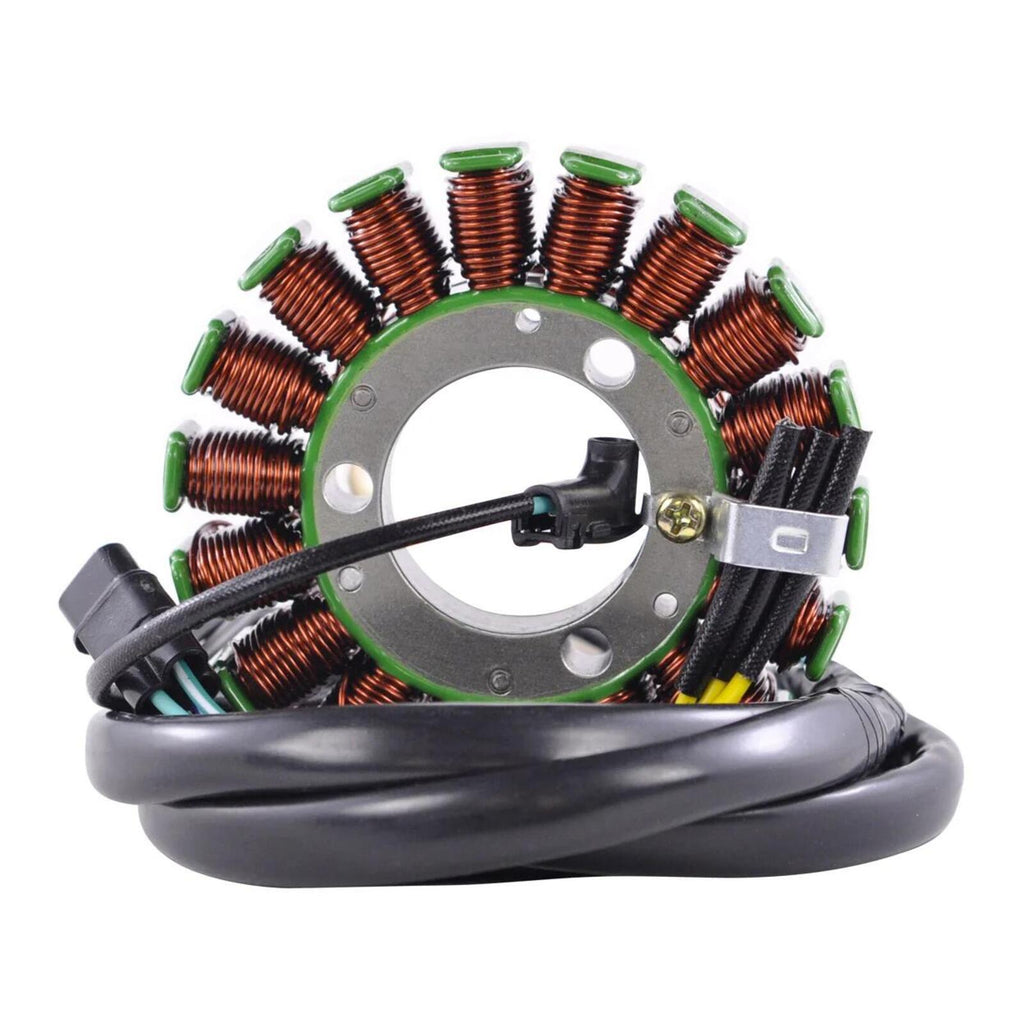

Brand new aftermarket stator designed as a direct replacement for the original unit. Manufactured using premium materials for reliable charging performance and long service life, this stator features high-grade copper windings, quality laminations, and includes the pickup pulsar coil, connectors, and rubber grommet for straightforward installation.
Features:
- Direct replacement for the original stator.
- Plug-and-play design for easy installation.
- Manufactured using high-grade lamination materials.
- Premium copper windings rated to withstand temperatures up to 200°C.
- Pickup pulsar coil included.

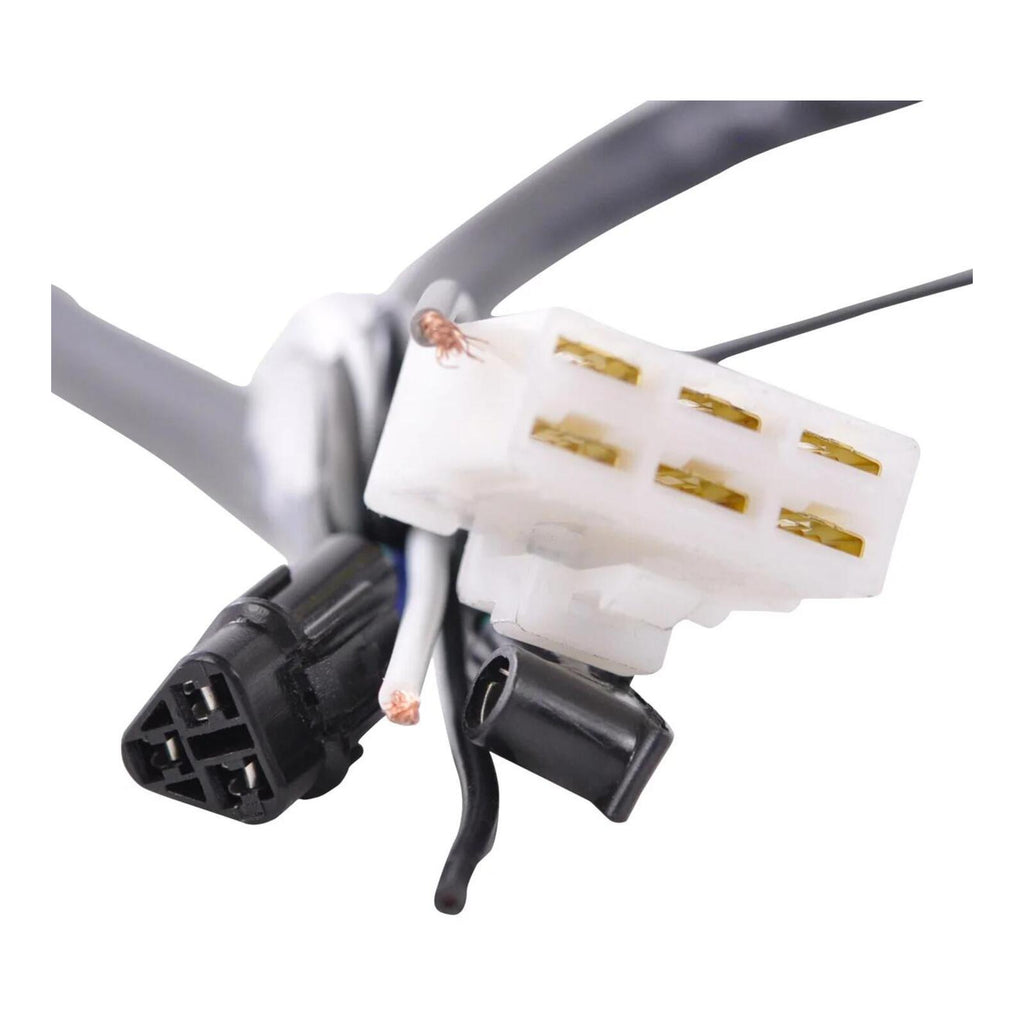

- Connectors included.
- Rubber grommet included.
- Factory tested before shipping.
Dimensions:
Interior Diameter: 35 mm - Exterior Diameter: 93 mm
- Thickness: 18 mm
- Wire Length (Stator to Grommet): 155 mm
- Wire Length (Grommet to Plug 1): 505 mm
- Wire Length (Grommet to Plug 2): 810 mm
- Wire Length (Grommet to Pickup Coil Plug): 72 mm
- Wire Length (Pickup Coil to Grommet): 60 mm
Specifications:
- Number of Wires: 13
- Number of Plugs: 4
- Number of Pins: 13
- Alternator Resistance (Yellow to Yellow): 0.9 Ω ±20%
- Pickup Resistance (Blue/White to Green/White): 244 Ω ±20%
