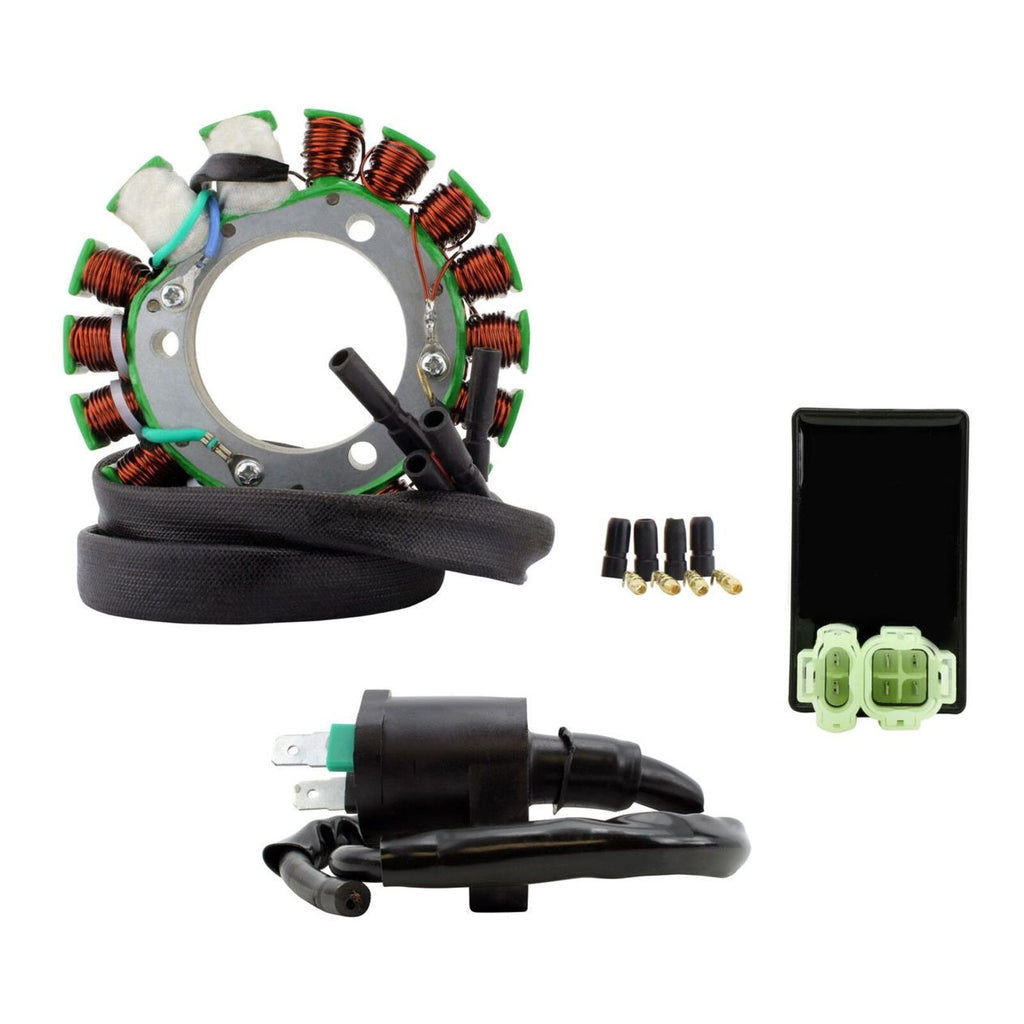

STATOR KIT + CDI BOX + IGN COIL HON XR 600 R '88-00'
$629.99
High-Output Stator 200W + PeakRPM CDI + External Ignition Coil Kit
- Direct replacement for the original unit
- Plug-and-play, direct fit and easy installation
- All products are tested before shipping
Product images are accurate. If unsure, compare the items with your original parts before ordering.

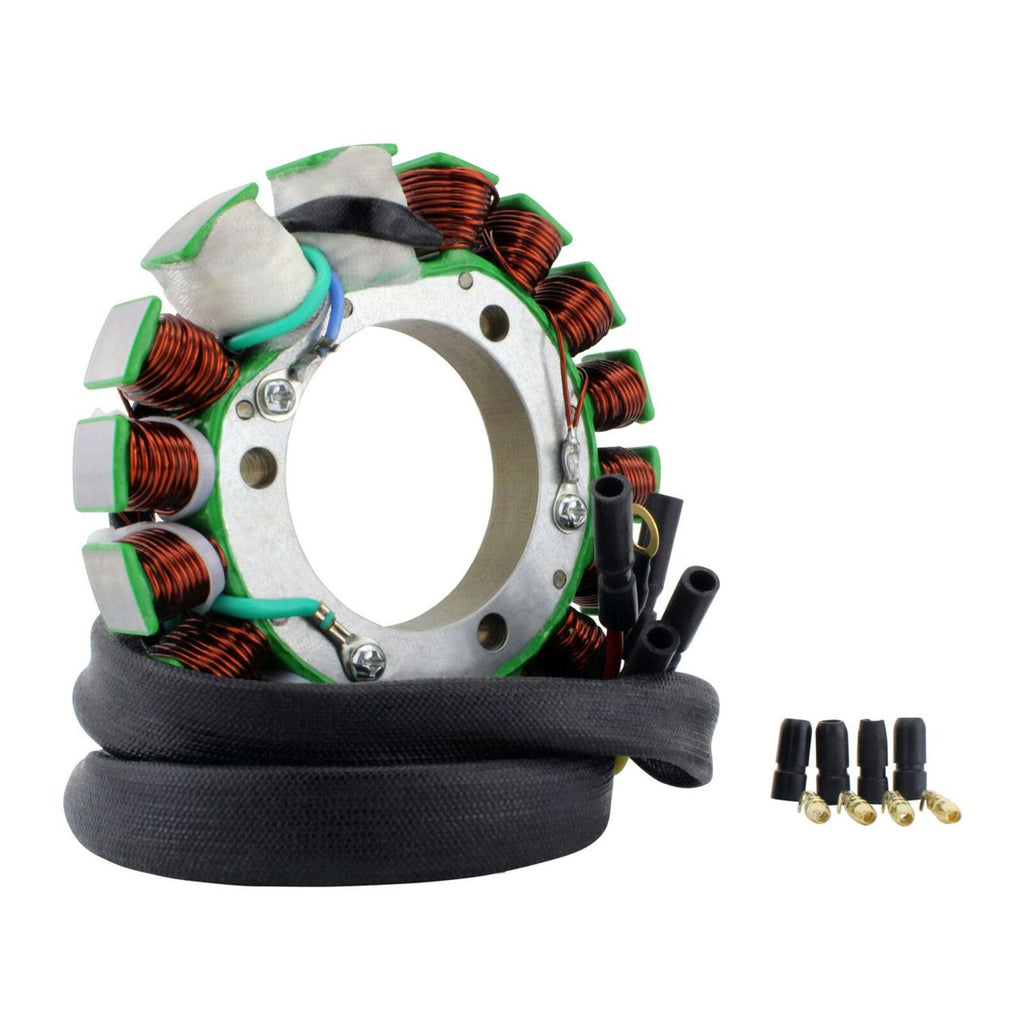

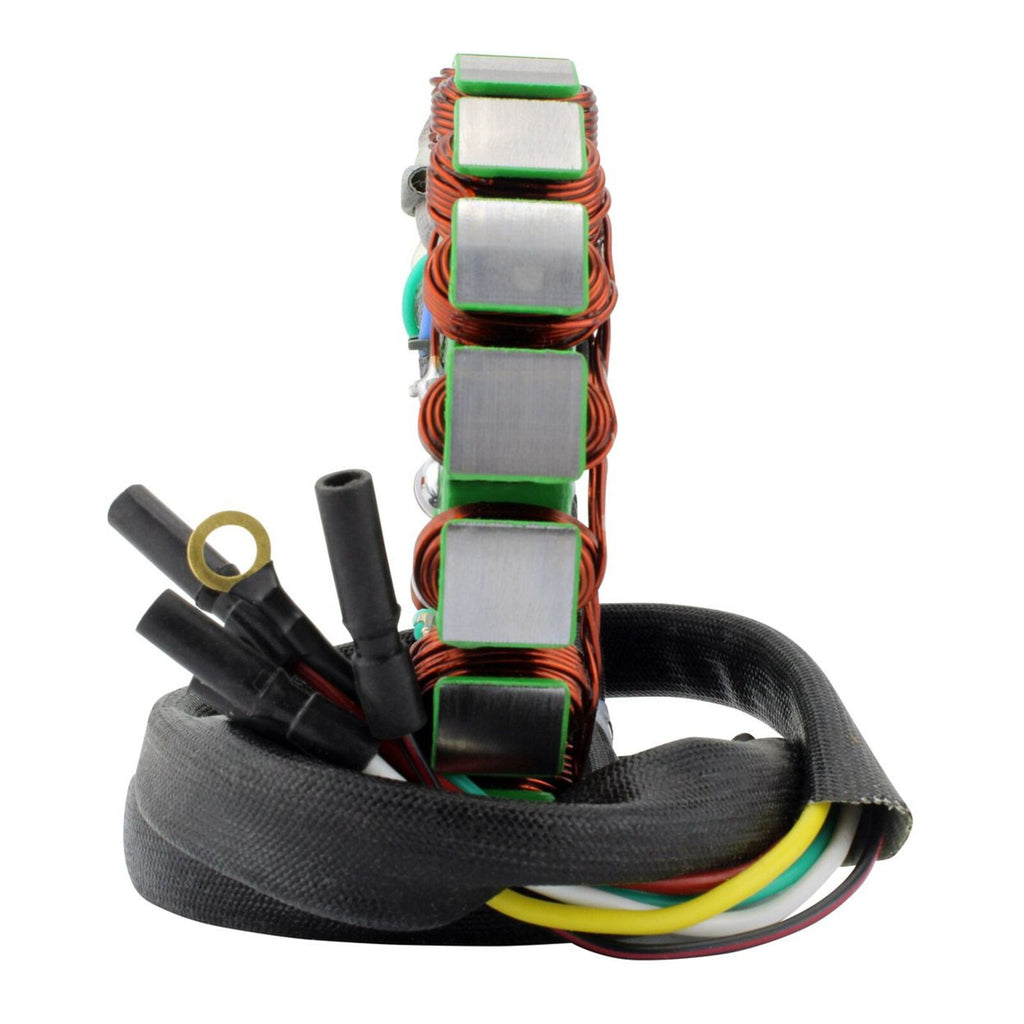

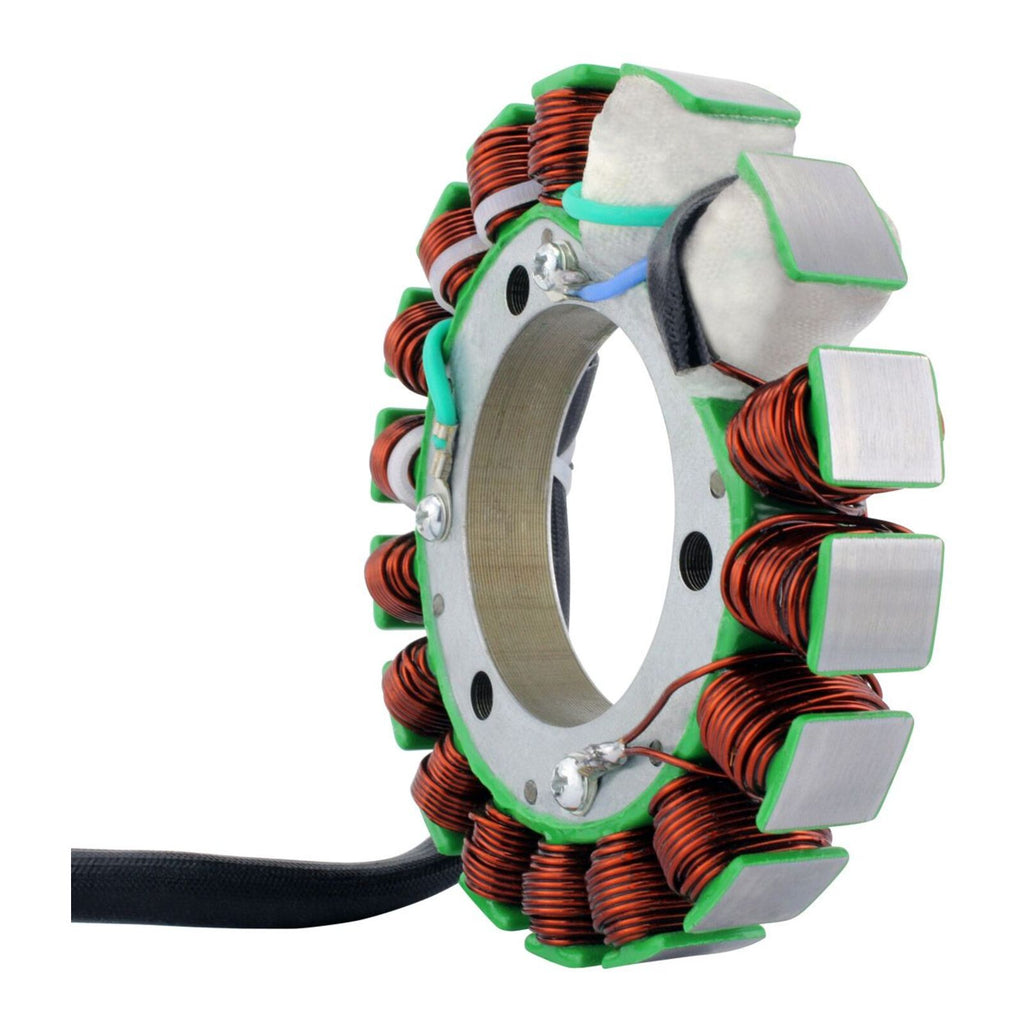

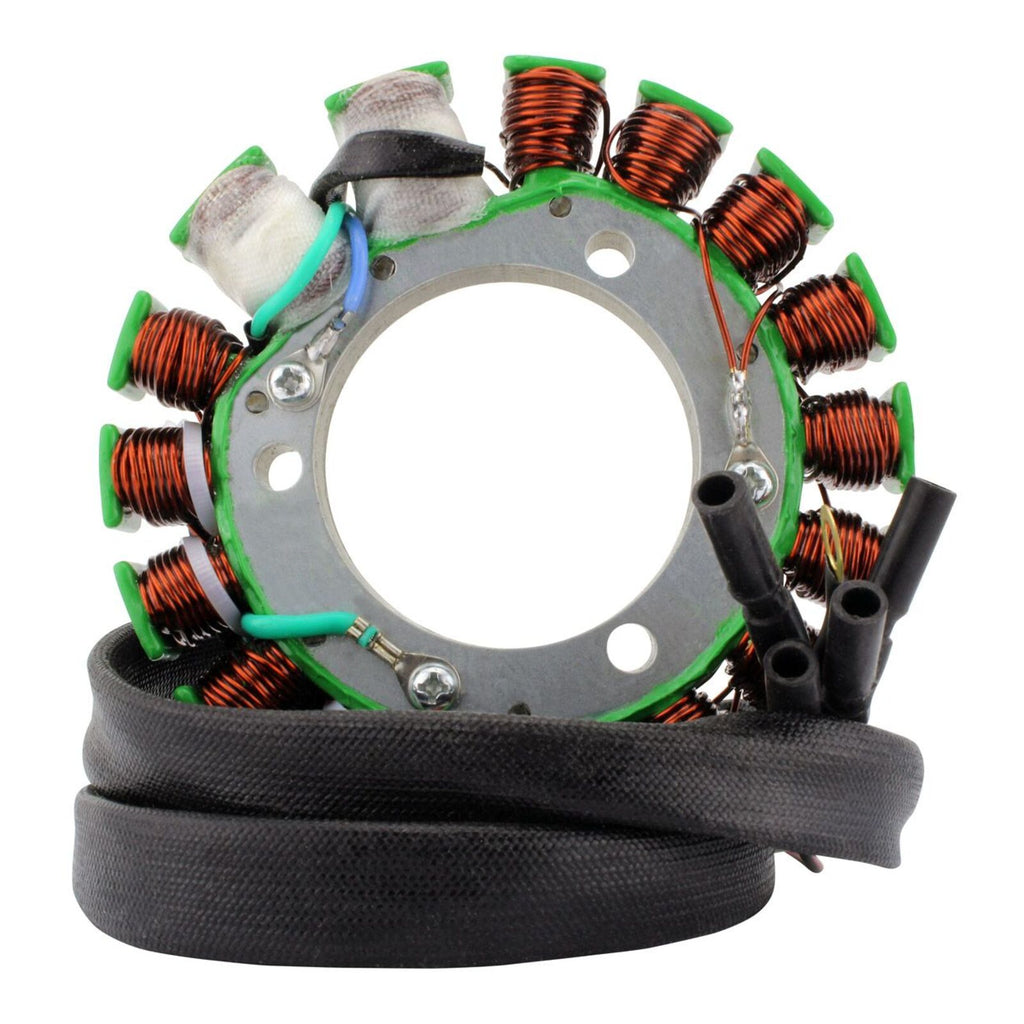

Brand New Aftermarket High-Output Stator 200W
- High-grade lamination materials
- High-grade copper windings resistant to temperatures up to 200°C
- 2 x 100W output
- Connectors included
- Rubber grommet included
An opposite connector (main harness side) is included, as original connectors are often melted, corroded or defective and can cause recurring electrical issues.

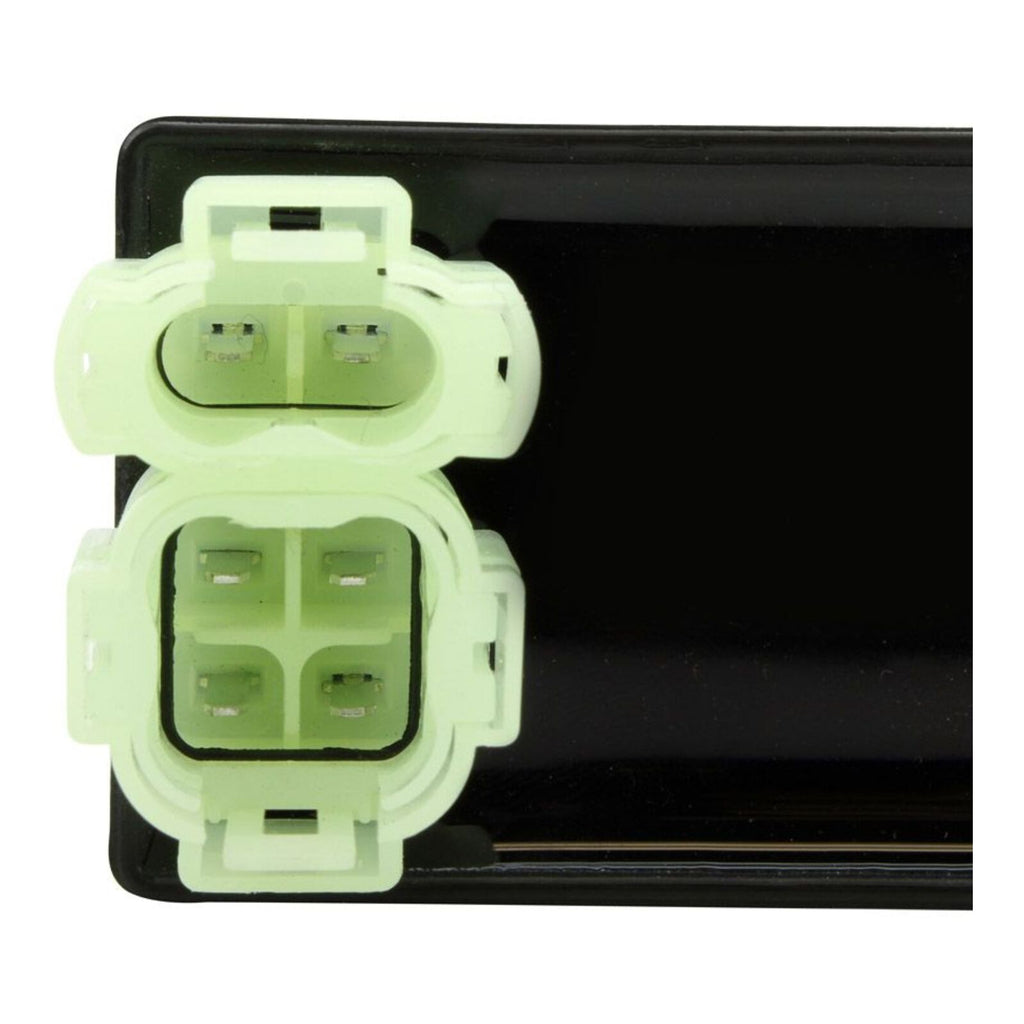

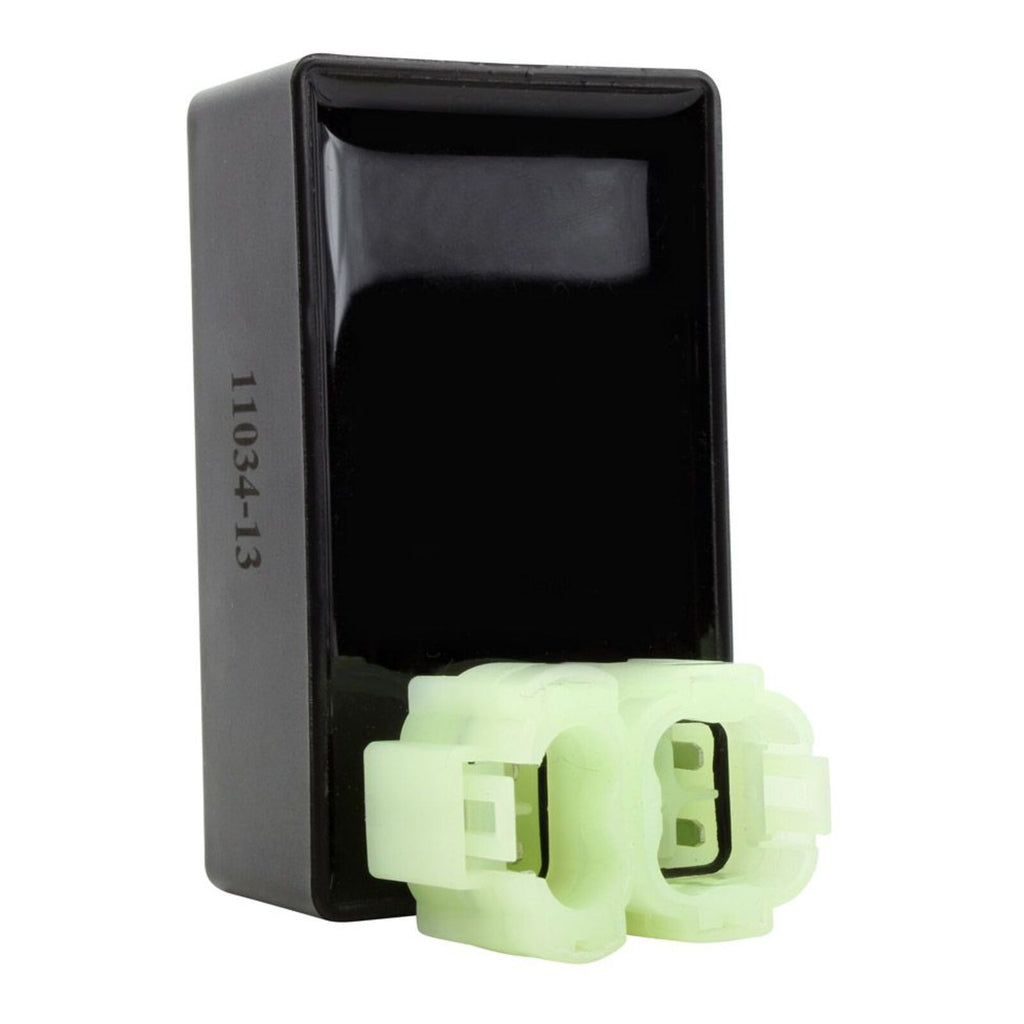

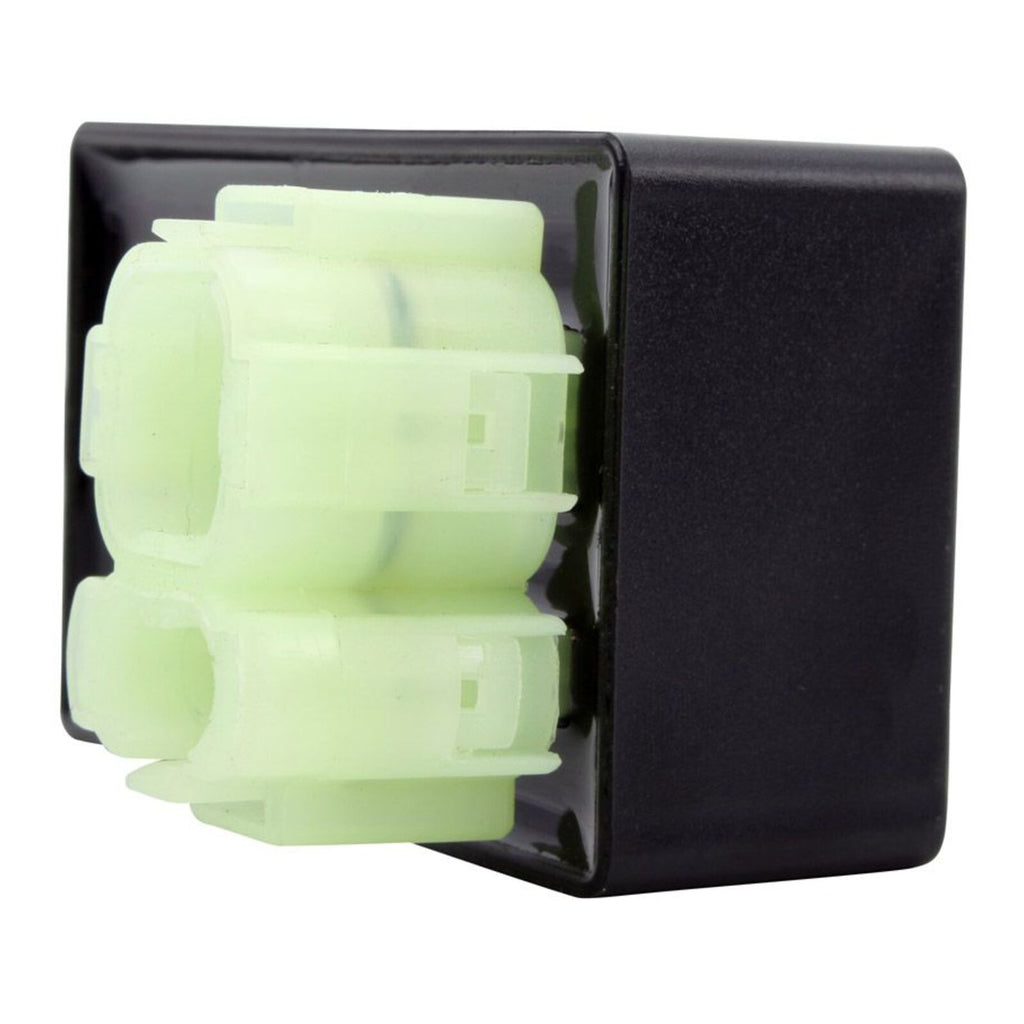

Brand New Aftermarket CDI Box
- PeakRPM CDI box provides optimised output for your ride.
- Higher-grade electronic components.
- Quality exceeds OEM equipment.

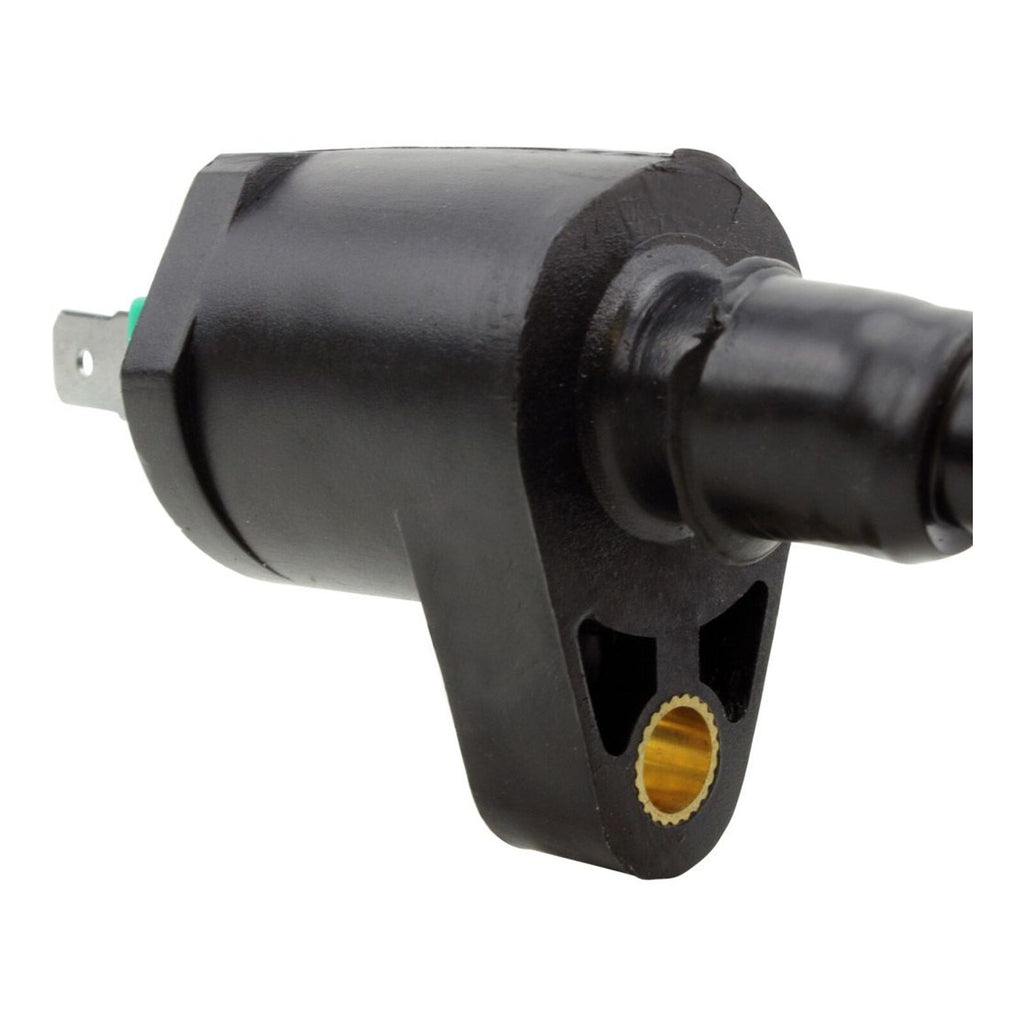

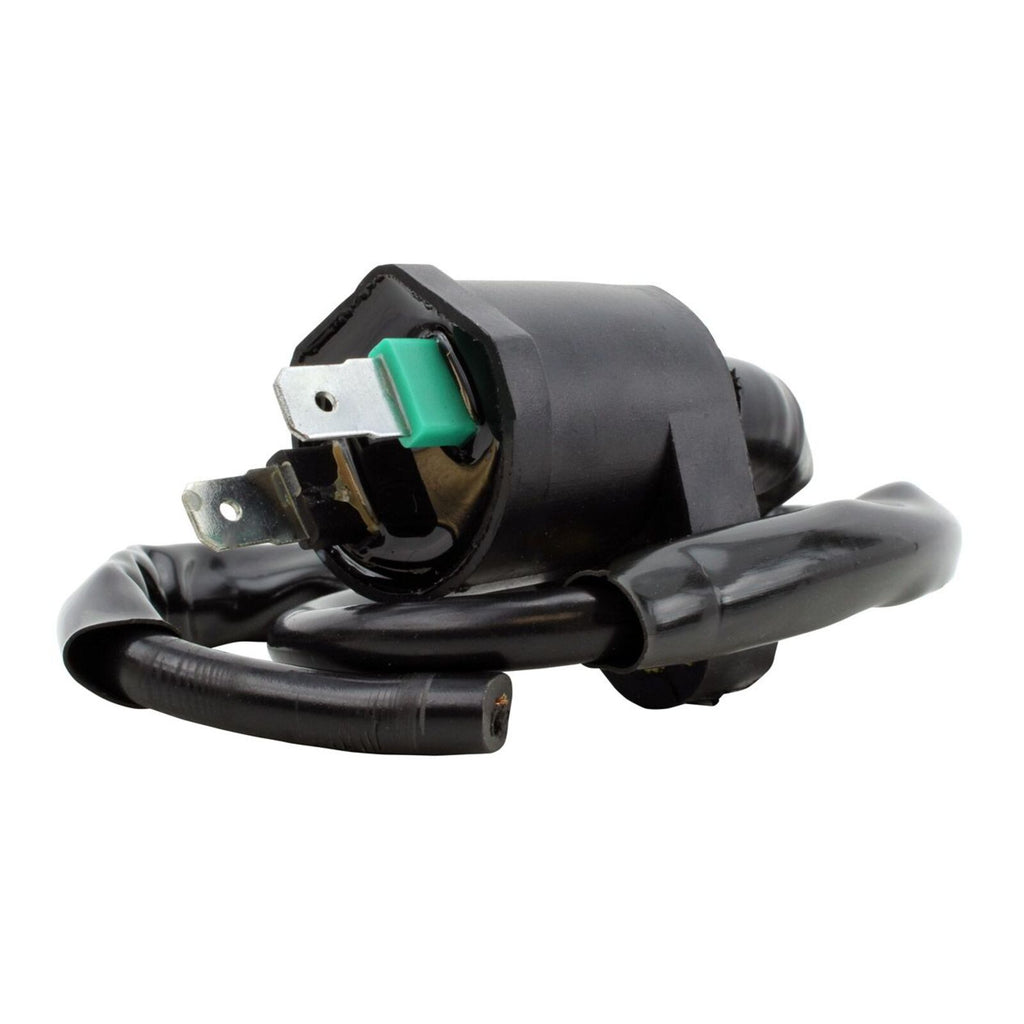

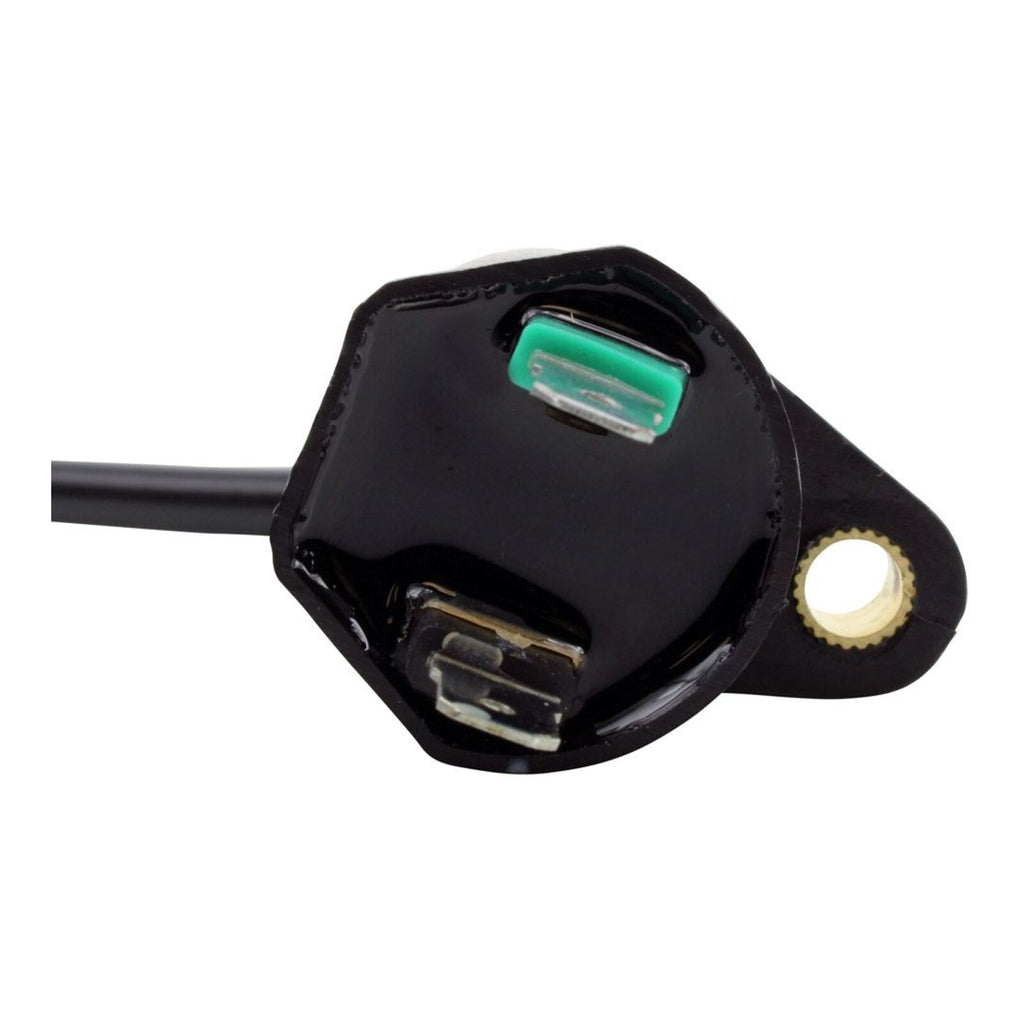

Brand New Aftermarket External Ignition Coil
- Requires reinstallation of the OEM spark plug cap(s).
- Once the OEM spark plug cap(s) are installed, the coil becomes a direct-fit, plug-and-play unit.
Before Installing the New Stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on the stator and regulator rectifier.
- Check and repair any melted wiring.
- Apply high-temperature dielectric grease to all connectors.
The stator may use a different wire colour code from the original part. All wires are installed in the correct order; do not change the wiring configuration. This stator is designed as a direct plug-in replacement. Always use thread-locking compound when securing the stator. If the stator includes a pickup coil, check the air gap during installation. Set it as close as possible, but no less than 0.010".
Before Installing the New CDI
The CDI may use a different wire colour code from the original. All wires are installed in the correct order; do not change the wiring configuration. This CDI is designed as a direct plug-in replacement.
Before Installing the New External Ignition Coil
- Remove the spark plug cap(s) from the OEM external ignition coil.
- Screw the cap(s) onto the new external ignition coil.
Warning
Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.
High-Output Stator 200W Specifications
Dimensions:
- Interior diameter: 54 mm
- Exterior diameter: 115 mm
- Thickness: 15 mm
- Stator-to-grommet wire length: 200 mm
- Grommet-to-plug wire length: 700 mm
Other Specifications:
- Number of wires: 5
- Number of plugs: 5
- Number of pins: 3
- Number of poles: 17
- Alternator resistance (white to green): 0.4 ohms ±20%
- Alternator resistance (yellow to red): 0.4 ohms ±20%
- Source resistance (black/red to green): 140 ohms ±20%
High-Performance CDI Box Specifications
Dimensions:
- Height: 22 mm
- Length: 66 mm
- Width: 42 mm
Other Specifications:
- Number of plugs: 2
- Number of pins: 6
Important Note: The only reliable way to test a CDI box is to swap it with a known-good unit from the same year, make and model. We recommend ruling out all other possible causes before replacing the CDI box.
External Ignition Coil
Specifications not provided.
