STATOR + CNC MOSFET KIT TRI STREET 675/R
$813.99

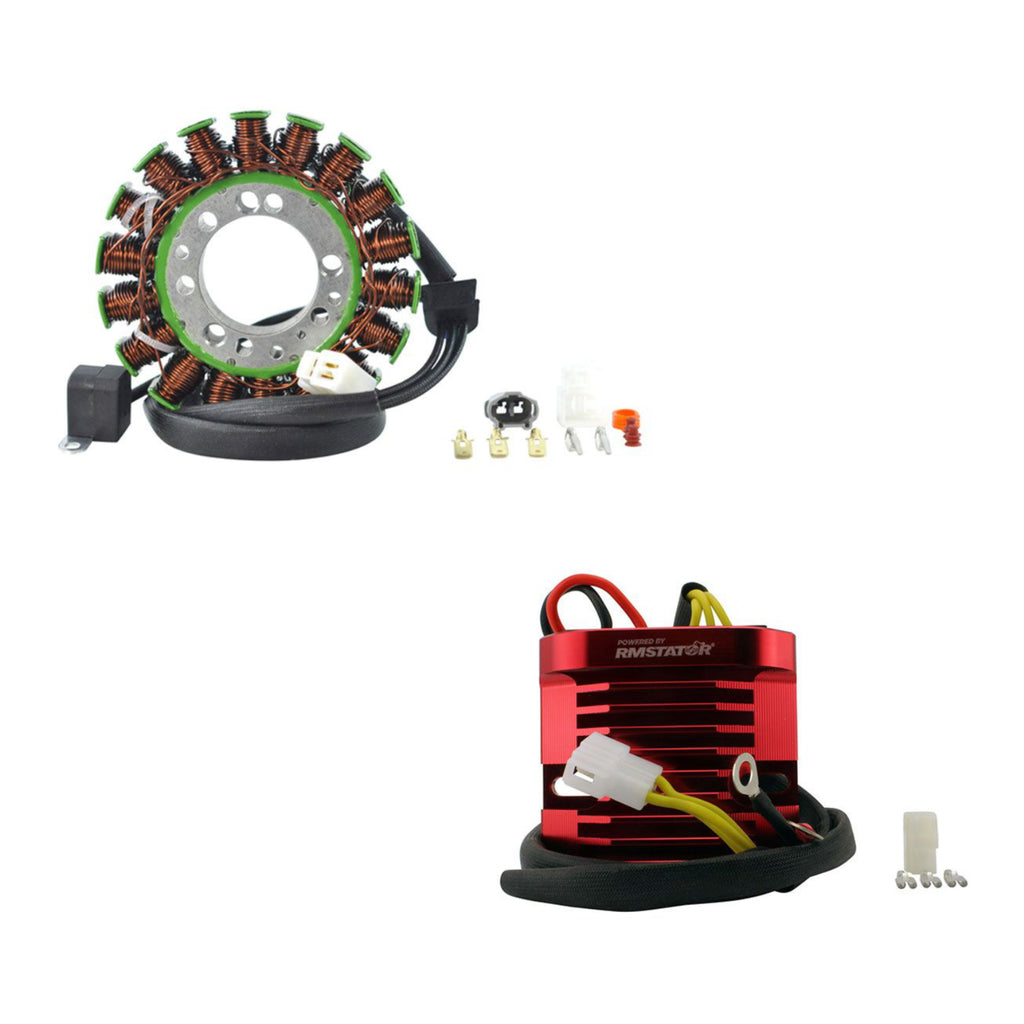

Brand new aftermarket Stator and RMSTATOR Red Machined Aluminium MOSFET Voltage Regulator/Rectifier kit.
- Direct replacement for the original unit.
- Plug-and-play, direct fit and easy installation.

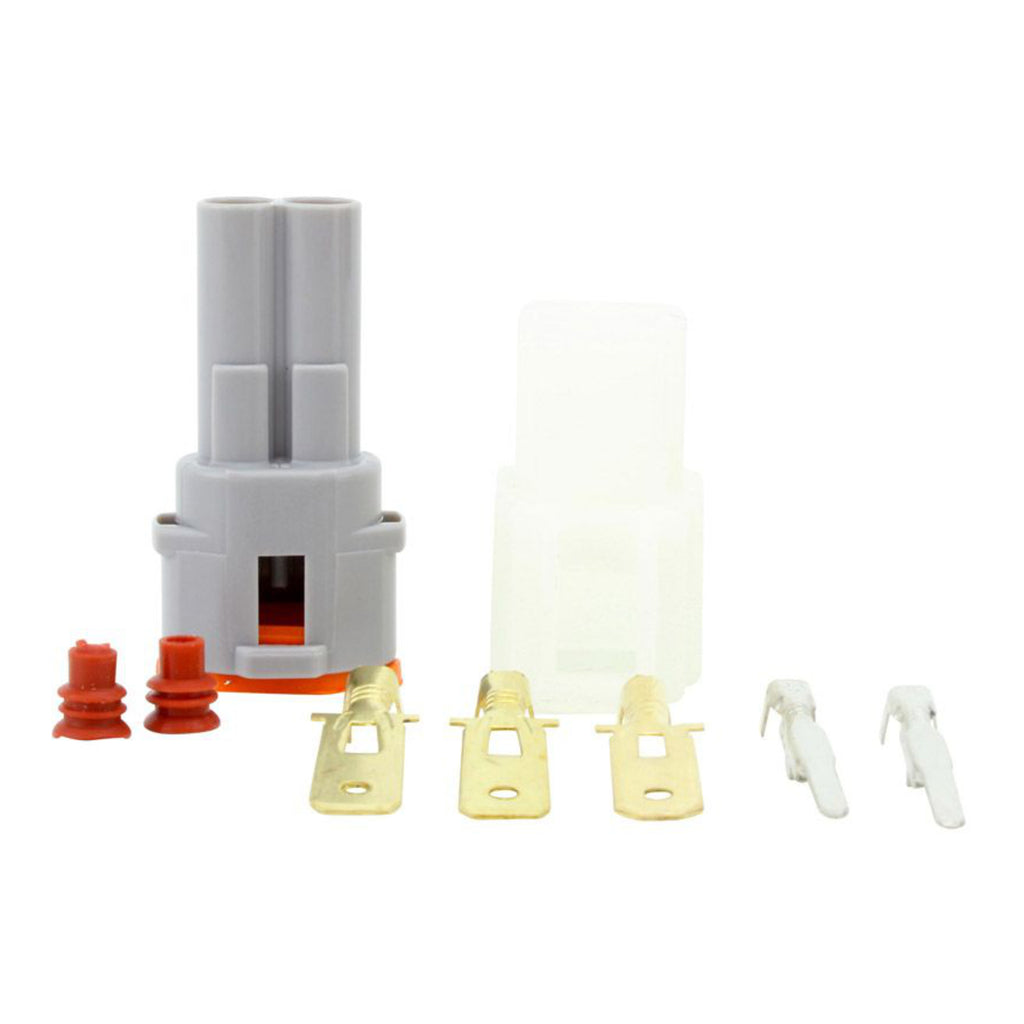

- Connectors included.
- Rubber grommet included.
- All products are tested before shipping.
Product images are accurate. If in doubt, compare the items with your original parts.

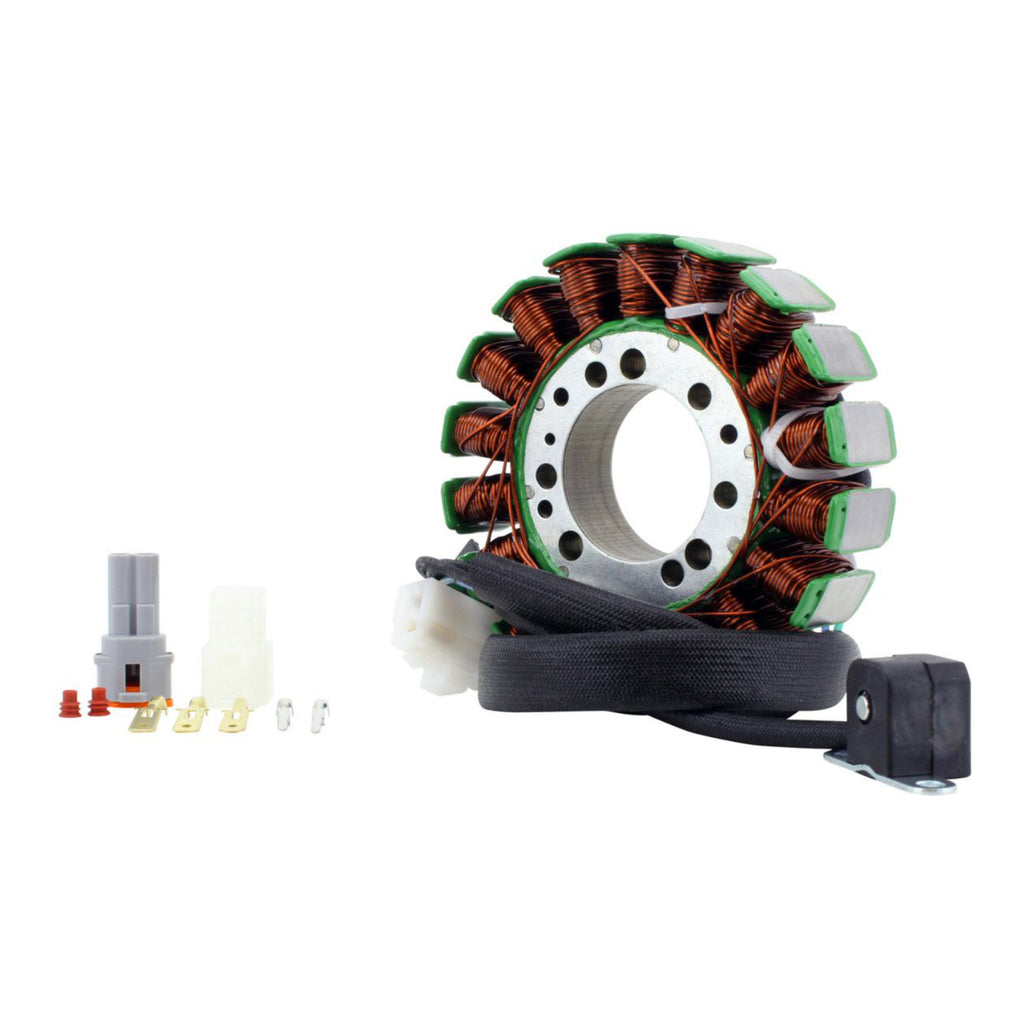

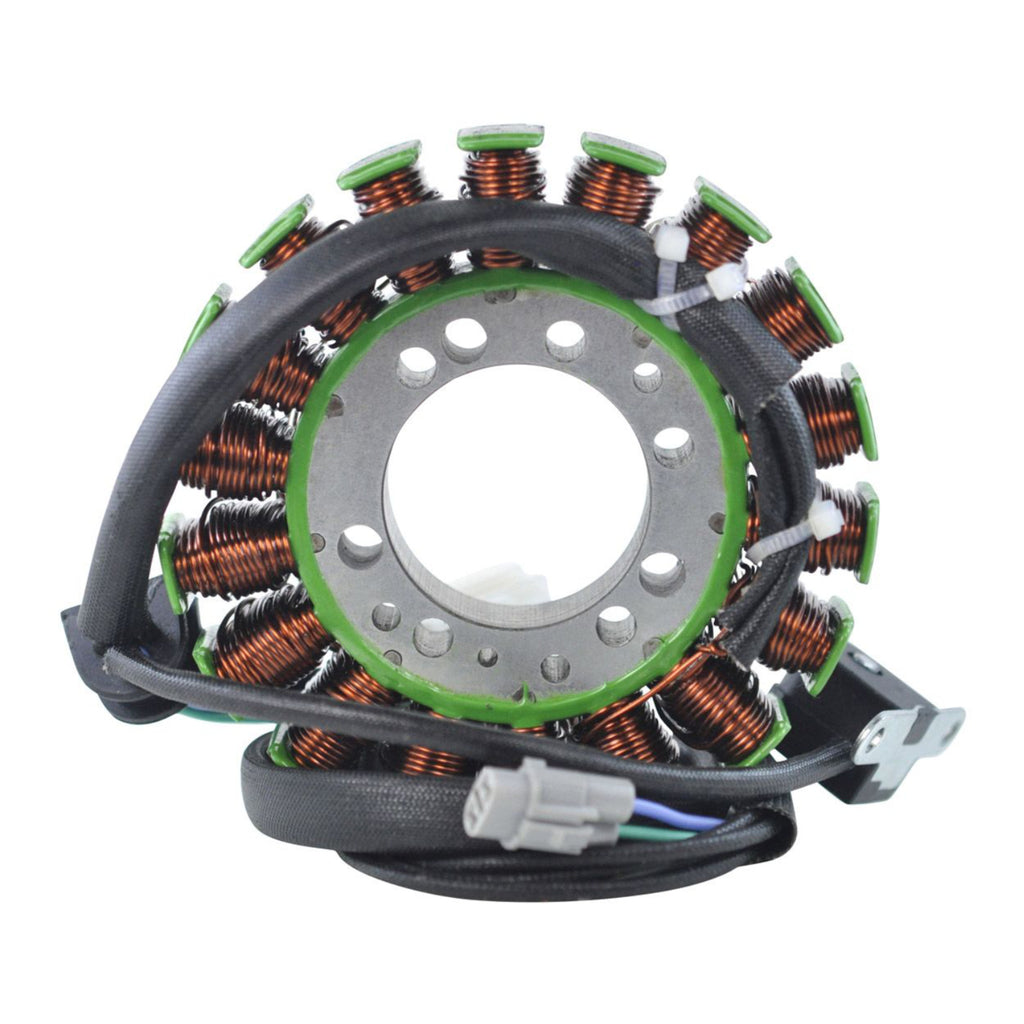

Stator
- High-grade lamination materials.
- High-grade copper windings, resistant to temperatures up to 200°C.
- Pickup/pulsar coil included.

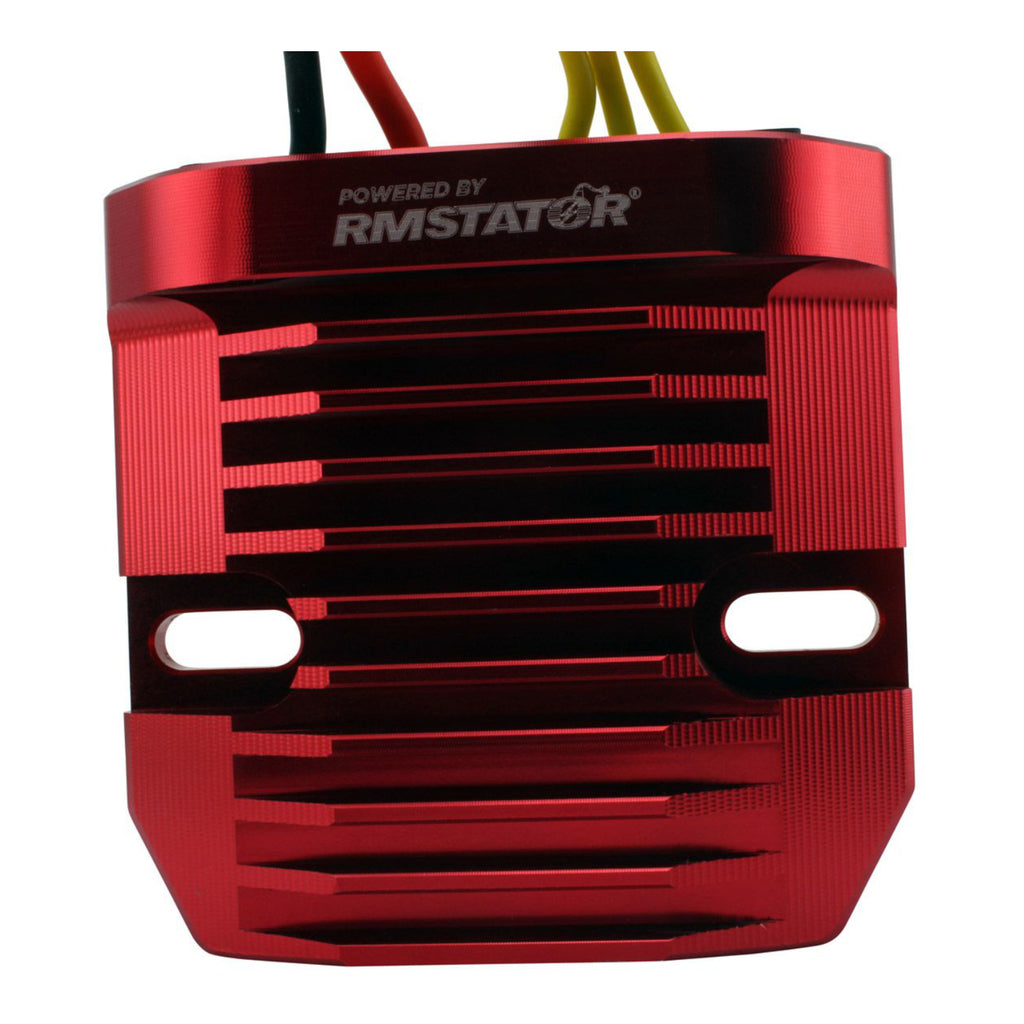

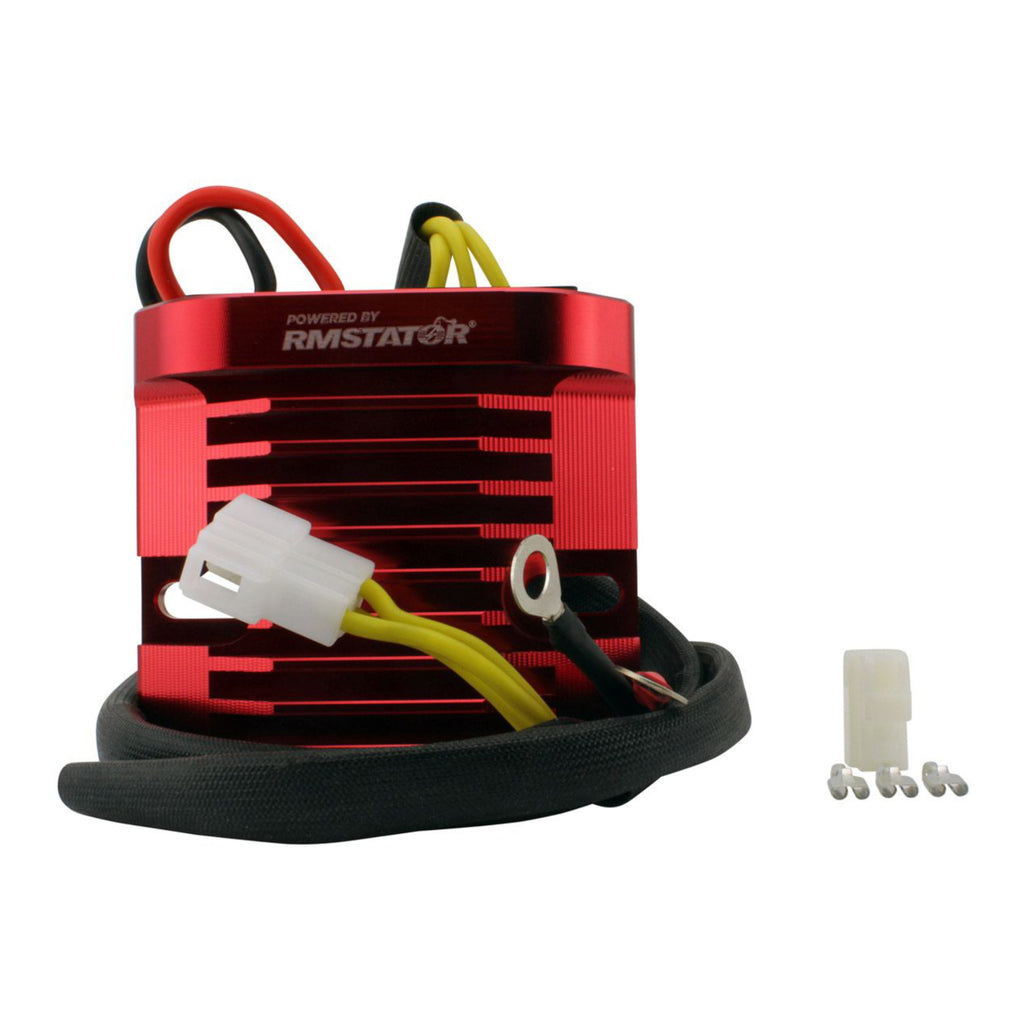

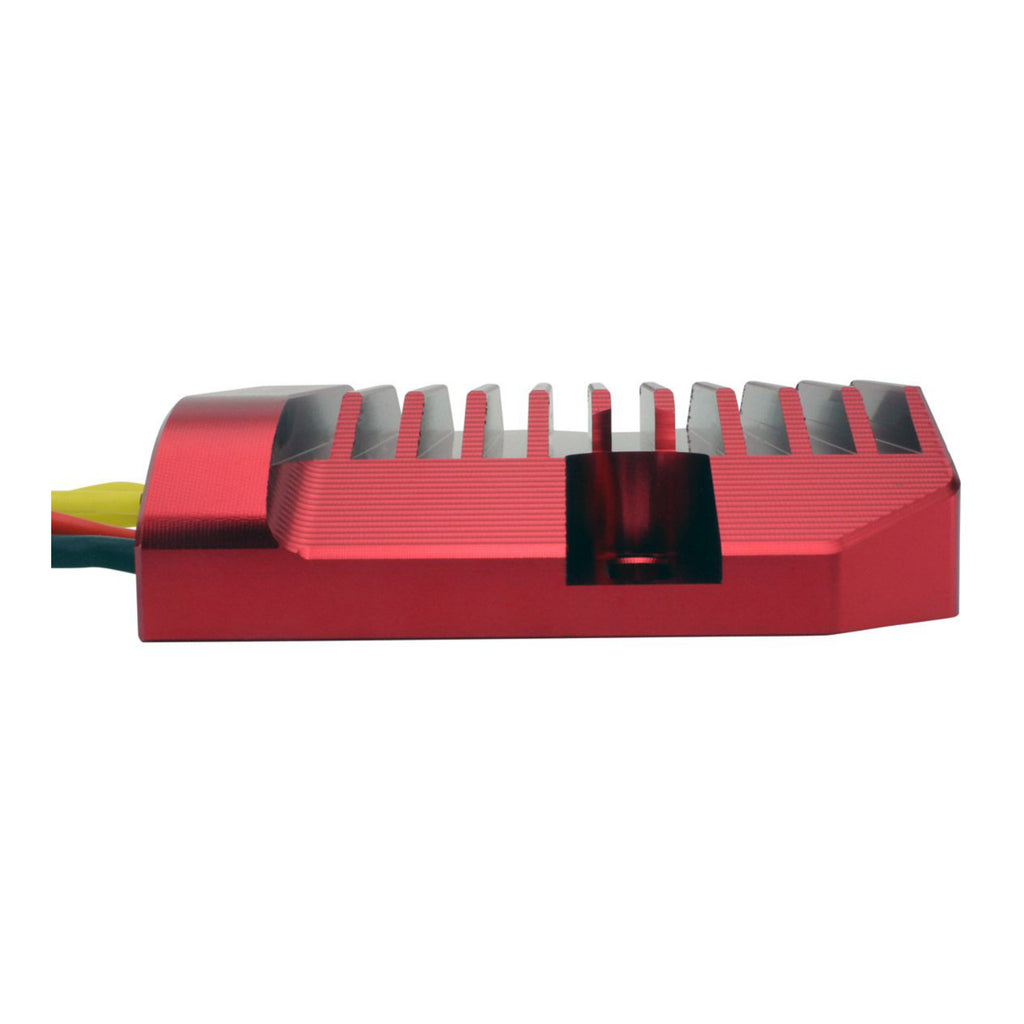

RMSTATOR Red Machined Aluminium MOSFET Voltage Regulator/Rectifier
- No assembly required.
- Higher-grade electrical components.
- Improved heatsink and charging capabilities.
- Quality exceeds OEM equipment.

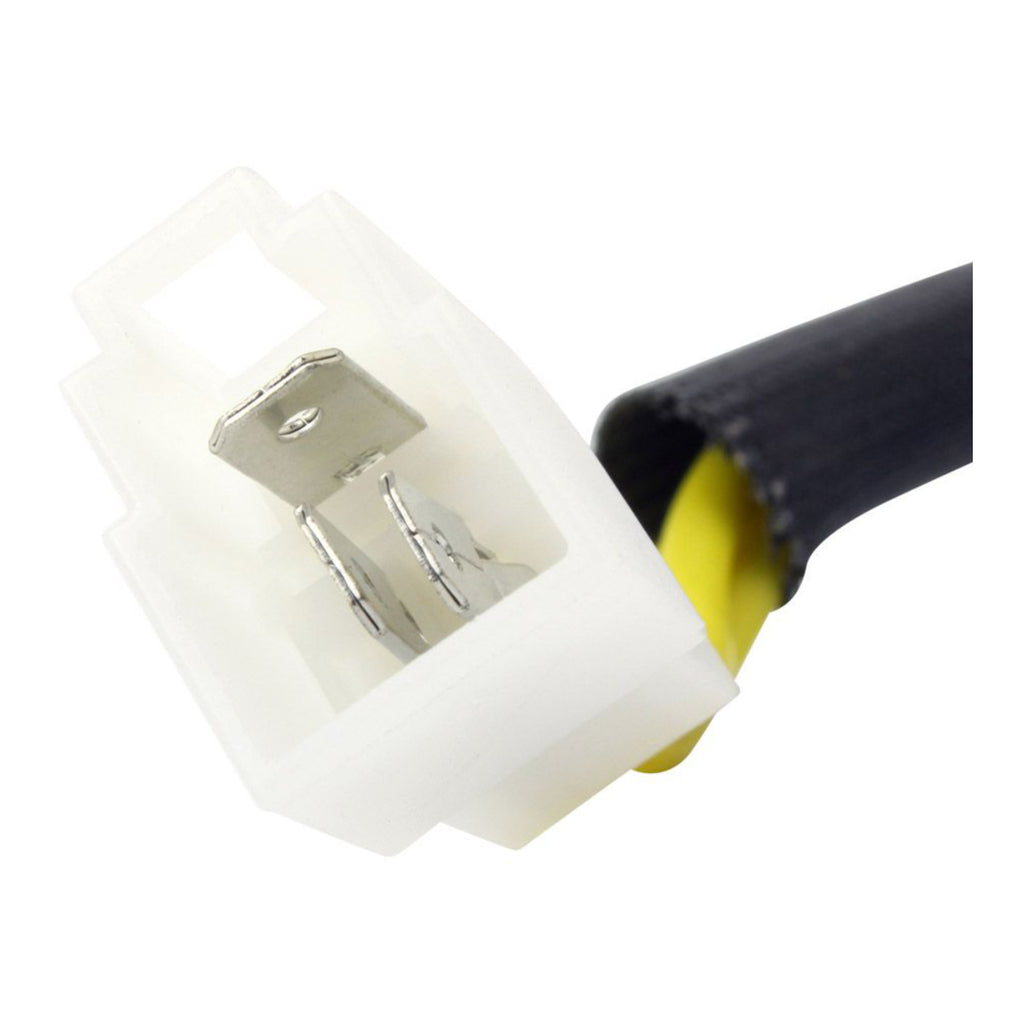

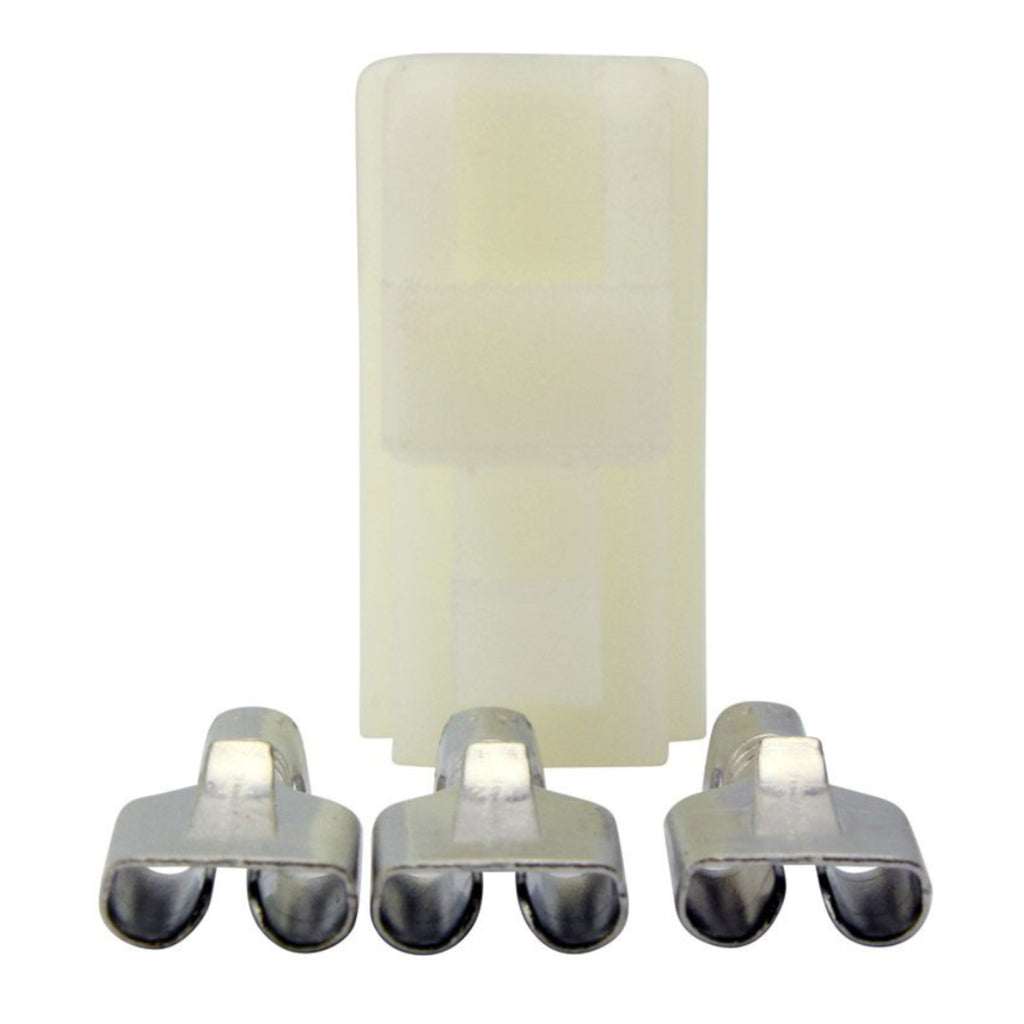

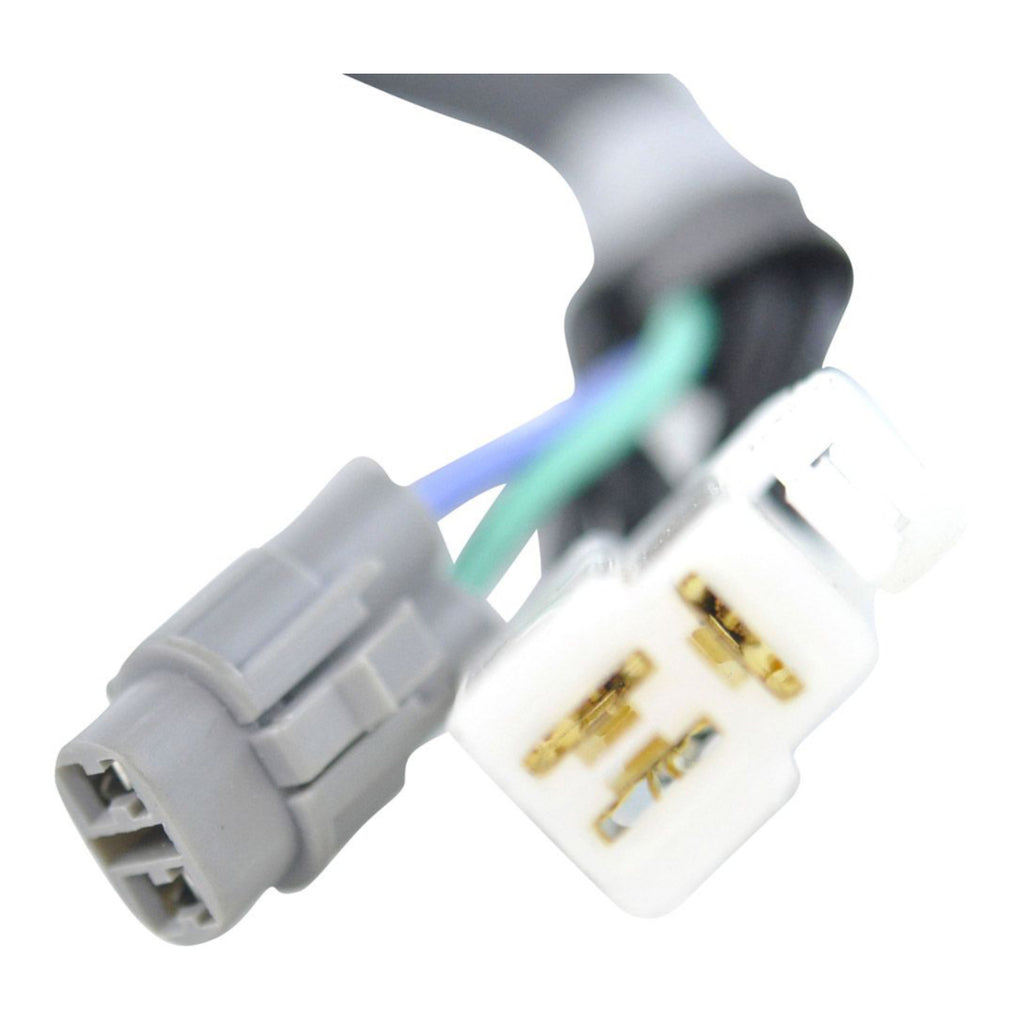

The opposite connector (main harness side) is included. Original connectors can become melted, corroded or defective, causing recurring electrical issues.
Warning:
Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.
Stator Dimensions:
- Interior diameter: 42 mm.
- Exterior diameter: 115 mm.
- Thickness: 22 mm.
- Stator-to-grommet wire length: 140 mm.
- Grommet-to-plug wire lengths: 530 mm and 590 mm.
- Pickup coil wire-to-grommet length: 155 mm.
Other Specifications:
- Number of wires: 5.

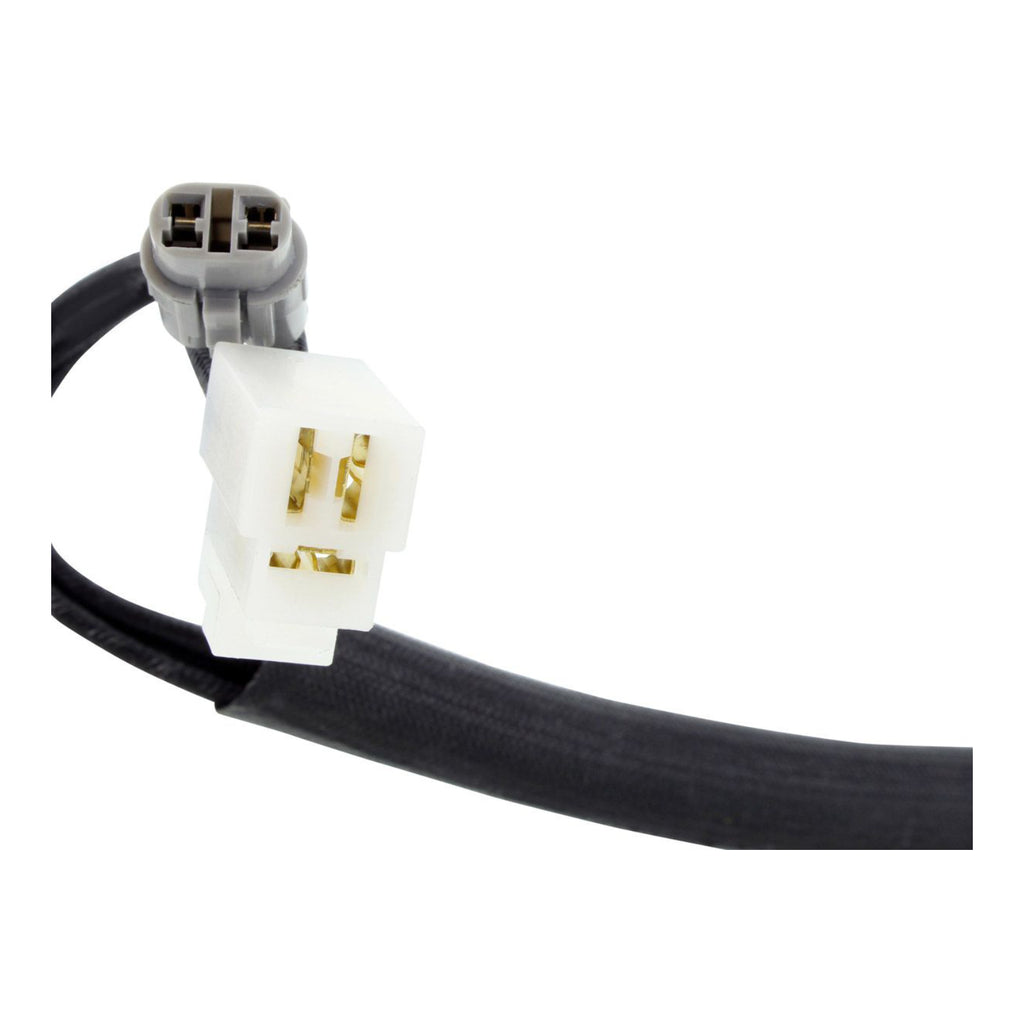

- Number of plugs: 2.
- Number of pins: 5.
- Number of poles: 18.
- Alternator resistance (black to black): 0.5 ohms ±20%.
- Alternator resistance to ground: O.L.
- Pickup coil resistance (green to blue): 200 ohms ±20%.
RMSTATOR Red Machined Aluminium MOSFET Voltage Regulator/Rectifier Dimensions:
- Width: 95 mm.
- Length: 90 mm.
- Height: 30 mm.
- Wire lengths: 811 mm and 350 mm.
- Mounting holes, centre-to-centre: 75 mm.
Other Specifications:
- Number of plugs: 2.
- Number of pins: 5.
- Number of wires: 5.
- Minimum charging voltage: 14.5 V ±0.5 V.
- Maximum charging current: 50 A / 500 W.
- Open-circuit voltage: Less than 15 V.
- Operating temperature: -20°C to 85°C.
